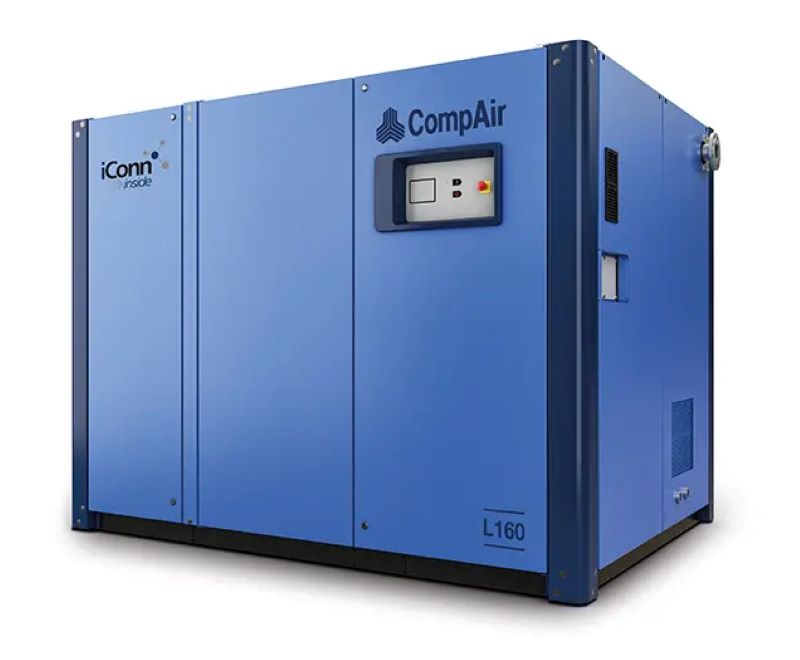

CompAir has announced the launch of its new 110 to 250 kW Four Core compressor range, combining best-in-class compressed air efficiency with a small footprint and sustainable design for eco-conscious businesses.
The FourCore range offers all the capabilities of a two-stage compressor, but with only the footprint of a single-stage unit. It therefore provides businesses – who might not have previously had the on-site space available – the opportunity to take advantage of the capabilities of two-stage technology. And when compared with previous single-stage compressors in this size range from CompAir, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution for decision makers.
Our application engineering team, based at the Simmern Centre of Excellence production site in Germany has designed and engineered a brand new, patented technology that offers best-in-class energy efficiency. They have developed a premium efficiency 2-stage model for fixed and regulated speed compressors using the new technology of the compact double stage airend. What’s unique about this design is that the airend has 1 motor and 4 rotors located in a single, semi-integrated casting. This differs from traditional 2-stage compressors, providing a compact package with high energy savings. In fact, these machines are the same size as a 1 stage machine due to new airend technology.
CompAir C55-14 -C76
Volume Flow 5.5 to 7.6m3/min & Operating Pressure 7 to 14 bar
This new range of compressors stands out for its low diesel
consumption, which is 10% less than the previous range.
Equipped with a Diesel Particle Filter, these modern
compressors are built to the latest emission standard Stage V.
Thanks to a wide pressure range up to 14 bar, this compact
compressor range is extremely versatile and meets the
requirements of numerous applications.
Volume Flow 3.5 to 5m3/min & Operating Pressure 7 to 10 bar
The highly successful CompAir range C35-10 to C50 is driven
by exceptionally quiet-running, water-cooled Yanmar 4-
cylinder diesel engines. The compressor is particularly
suitable for applications in cities and built-up areas, where
stringent restrictions are set on noise emissions.
A wide range of condensate treatment technologies
Correctly discharging and disposing of the condensate
which occurs in a compressed air network is a critical part
of keeping the network functioning properly and at the the
correct network pressure. This all too often overlooked part
of the process is essential to keep the network running at
peak efficiency, this section explains the role of the
condensate drain in the compressed air network.
